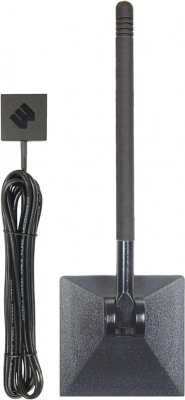

Wilson Electronics Mini Glass Mount Cellular Antenna 301114
|
|
In Stock
Item Number: 382037
Manufacturer: Wilson Electronics
Manufacturer Part No: 301114
|
Wilson Electronics Mini Glass Mount Cellular Antenna 301114
Features
|
• Low Profile
• Includes All Mounting Hardware
• Permanent Installation
• Includes 3M™ Adhesive For Mounting to Glass
• Built-In Ground Plane
|
Specifications
|
|
Part Number
|
|
301114
|
|
Frequency Range
|
|
806-894 MHz / 1850-1990 MHz
|
|
Impedance
|
|
50 ohms
|
|
Antenna Gain
|
|
1.4 dBi 806-894MHz / 2.4 dBi 1850-1990 MHz
|
|
Radiation
|
|
Omni
|
|
Polarization
|
|
Vertical
|
|
Wavelength
|
|
1/4 Wavelength 806-894 MHz / 9/16 Wavelength 1850-1990 MHz
|
|
Ground Plane
|
|
Built-In Ground Plane
|
|
Connector
|
|
FME Female
|
|
Material
|
|
Whip - Plastic-Coated Steel Wire
|
|
Coax Cable
|
|
RG58 - 14 feet / 4.27 meters
|
|
Height
|
|
5.375 inches / 13.65 cm
|
|
Mount
|
|
Glass Mounting with 3M™ Adhesive
|
|
