Wireless Extender YX745 Signal Amplifier Kit

Wireless Extender YX745 Dual Band Signal Booster Amplifier Kit

The Wi-Ex YX745 is a zBoost wireless kit that includes an industrial metal base amplifier unit, power supply, two high gain signal antennas (panel and yagi), dome or panel internal antenna, signal combiner and mounting hardware, with coverage of up to 12,000 square feet.

The zBoost YX745 is designed for the professional installer and supports both 800MHz (Cellular) and 1900MHz (PCS) bands.

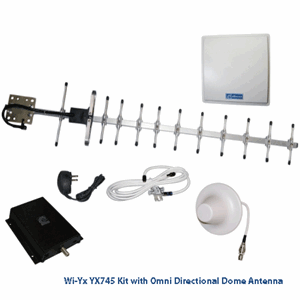

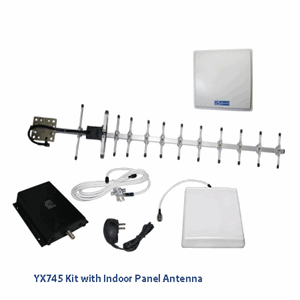

zBoost YX745 includes the amplifier base unit, power supply, high gain signal and base unit antennas, signal combiner, and mounting hardware. Choose between the kit with a ceiling mounted, omnidirectional coverage antenna the kit or with a wall mounted panel antenna.

Not Included are 75 ohm cable for the donor side and 50 ohm cable for the coverage side.

Features:

• zBoost YX745-PCS-CEL model improves all 6 PCS
  sub-bands and both Cellular sub-bands

• Increases your indoor cell signal coverage – up to 12,000 sq feet

• Decreases dropped or missed calls

• Enhances the performance of your cell phone, smartphone and wireless data card

• Extends phone battery life (uses less power when signal is stronger)

• Works with all phones and U.S. carriers (except Nextel/iDEN)

• Maintains network integrity using patent-pending technologies

• Manufactured with the highest quality control – (individually calibrated)


PRODUCT SPECIFICATIONS

PCS Frequency

• Frequency: 1850-1990 MHz

• PCS Bands ALL: A,D,B,E,F & C

• Network Format: CDMA, GSM, TDMA, AMPS, GPRS, EDGE, EV-DO, HSPA, 3G

• System Gain: 75 dB

• Composite Output Power Limit: EiRP 30 dBm

• Antenna Signal: 13 dBi Panel; F-type female

• Antenna: Base Unit 9 dBi Panel; TNC male

• Cable Loss: 3000 MHz RG-6, approximately 1 dB/10 ft


CEL Frequency

• Frequency: 824-894 MHz

• PCS Bands ALL: A, B, A’ and B’

• Network Format: CDMA, GSM, TDMA, AMPS, GPRS, EDGE, EV-DO, HSPA, 3G

• System Gain: 70 dB

• Composite Output Power Limit: EiRP 30 dBm

• Antenna Signal: 11 dBi Yagi; F-type female

• Antenna: Base Unit 6 dBi Panel; TNC male

• Cable Loss: 3000 MHz RG-6, approximately 0.6 dB/10 ft

Both PCS and CEL Frequencies

• Base Unit RF connectors: F-type female and TNC female

• Wall Supply Input: 100-120 VAC 60Hz

• Power Consumption: 2W standby, 5.5W max signal

• System Certifications: UL, FCC Parts 15 & 24 (PCS), FCC Parts 15 & 22 (CEL), Industry Canada

• Coverage (open areas) 4-5 signal bars at roof antenna; 120’ radius at 90O width; 3-4 bars inside; over 12,000 sq. ft

Handles all PCS or CEL protocols and includes multiple patent pending technologies to provide low-cost coverage while continually adapting to signals to prevent interference and remain transparent to the wireless network. Provides an indicator if the antennas are positioned improperly, but will NOT suffer damage or interfere with the Carrier Network.
