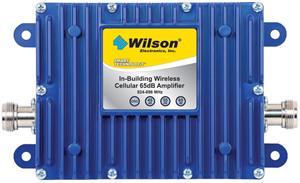

Wilson Electronics In-Building Wireless Cellular 65 dB 800 MHz Signal Amplifier 801165
|
|
In Stock
Item Number: 325692
Manufacturer: Wilson Electronics
Manufacturer Part No: 801165
|
Wilson Electronics In-Building Wireless Cellular 65 dB 800 MHz Signal Amplifier 801165
The Cellular 65 dB Amplifier improves signals on the Cellular (824-894 MHz) band and works with Verizon, US Cellular, Cellular One, Alltel, Bell Canada, Telus, AT&T and all other 800 MHz Cellular carriers. Will not work with Nextel/iDen Phones.
Before placing the order check this website to know what frequency your carrier is operating in your zip code. http://www.wirelessadvisor.com/.
Features:
• Works with all cell phones and laptop data cards
• Significantly improves voice and data signal quality
• Receives and transmits better than your cell phone
• Extends cell phone battery life
• Works with all generations of CDMA, TDMA, GSM and high-speed data technologies
• Improves data communication rates needed for 3G technologies.
• Automatic gain control up to 65 dB
• 2 dB gain step 30-60 dB
• Automatic gain adjusting in the event of oscillation and/or overload
• Gain indicator lights
• Automatic shutdown on overload
• Up to 3-watt power amplifier
• Power control logic ensures maximum output power is within cellular network standards
• Oscillation protection and shutdown auto reset
• FCC and IC type accepted
|
|
|
Antenna and Accessory Options • Yagi 800-900 MHz Antenna (301129)
• Dual-Polarity Dome Antenna (301123)
• Dual-Band Panel Antenna (301135)
• Low Profile Antenna (301106)
• 2-Way Splitters & Taps
• Coax Cable (9913)
• Lightning Surge Protector (859902)
|
Specifications
|
Part Number
|
|
801165
|
|
Frequency
|
|
824-835 MHz, 869-880 MHz
|
|
Gain
|
|
65 dB
|
|
Max Output Power
|
|
3 watts
|
|
Max RF
|
|
+ 30 dBm / + 30 dBm
|
|
Noise Figure
|
|
3-4 dB typical
|
|
Flatness
|
|
± 2.5 dB
|
|
Isolation
|
|
> 90 dB
|
|
Power Requirements
|
|
Input: 100-240 V AC 50/60 Hz 0.6 A / Output: 6 V DC 3 A
|
|
Connectors
|
|
N-Female 50 ohms
|
|
Dimensions
|
|
5.6 x 3.6 x 1.7 (inch) / 14.2 x 9.1 x 4.4 (cm)
|
|
Weight
|
|
1.5 lbs / 0.7 kg
|
