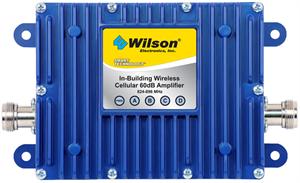

Wilson Electronics In-Building Wireless Cellular 60 dB Amplifier 801106

<< Previous in Featured Products

Next in Featured Products >>

Price: $575.00

In Stock

Item Number: 801106

Manufacturer: Wilson Electronics

Manufacturer Part No: 801106

Quantity:

Email this page to a friend

Wilson Electronics In-Building Wireless Signal Cellular 60 db Amplifier 800 Mhz 801106

Before placing the order check this website to know what frequency your carrier is operating in your zip code. http://www.wirelessadvisor.com/.

Installation Instructions

Features

Works with all generations of CDMA, TDMA, GSM, EVDO, HSDPA, UMTS, EDGE and high-speed data technologies
Compatible with all networks including AT&T and Verizon Wireless with Frequency range of 824 - 894 MHz (Cellular)
Improves data communication rates needed for 3G technologies.
Automatic gain control up to 60 dB
2 dB gain step 30-60 dB
Power control logic ensures maximum output power is within cellular standards
Gain indicator lights
Automatic shutdown on overload
FCC and IC type accepted

Antenna and Accessory Options

Yagi 800-900 MHz Antenna (301129)
Dual-Polarity Dome Antenna (301123)
Dual-Band Panel Antenna (301135)
Low Profile Antenna (301106)
2-Way Splitters & Taps
Coax Cable (9913)
Lightning Surge Protector (859902)

Specifications

Part Number	801106
Frequency	824-849 MHz, 869-894 MHz
Gain	60 dB
Max Output Power	up to 3 watts
Max RF	+ 30 dBm / + 30 dBm
Noise Figure	3 dB nominal
Flatness	± 2.5 dB
Isolation	> 90 dB
Power Requirements	120 V AC 3 A max
Connectors	N-Female 50 ohms
Dimensions	5.6 x 3.6 x 1.7(inches) / 14.2 x 9.1 x 4.4 (cm)

The Relationship between Gain and Power Output in Signal Boosters
