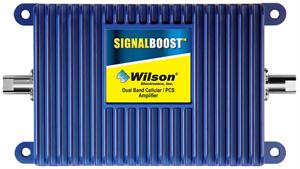

Wilson Electronics SIGNALBOOST Dual Band 824-894 MHz / 1850-1990 MHz Cellular Amplifier Kit 811214
|
|
In Stock
Item Number: 322871
Manufacturer: Wilson Electronics
Manufacturer Part No: 811214
|
Features:
|
|
• Works with all cell phones (except iDEN/Nextel)
• Supports CDMA, TDMA, GSM and AMPS, in addition to 1x and 3x data protocols such as HSDPA, EVDO and EDGE
• Up to 3 watts maximum output power
• Power control logic ensures maximum output power is within cellular standards
• Requires no physical connection to cell phone or data card
• Provides high signal-to-noise ratio
• protects cell sites from harmful interference

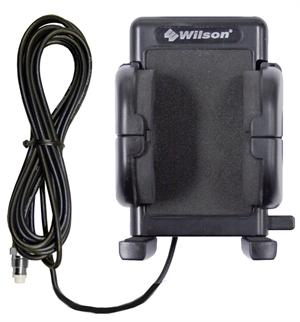

• Build-in antenna in the phone cradle permits hands-free operation (301146) included
• Dual band - Cellular and PCS
• FCC and IC type accepted
|
|
Specifications:
|
|
Part Number
|
|
811214
|
|
Frequency
|
|
824-894 MHz / 1850-1990 MHz
|
|
Gain
|
|
cell site controlled
|
|
Max Output Power
|
|
3 watts (cell site controlled)
|
|
Max RF
|
|
+35 dBm / +33 dBm
|
|
Noise Figure
|
|
3.5 dB nominal
|
|
Flatness
|
|
± 2 dB / ± 2 dB
|
|
Isolation
|
|
> 50 dB uplink/downlink
|
|
Power Requirements
|
|
12 V DC, 2 A
|
|
Connectors
|
|
FME-Male 50 ohms
|
|
Dimensions
|
|
5 x 3.5 x 1.2 (inches) 12.7 x 8.9 x 3 (cm)
|
|
Weight
|
|
1.03 lbs / 0.468 kg
|
|
|
|
|
|
