Wilson Electronic SIGNALBOOST DT Dual-Band 800/1900 MHz Desktop Amplifier 801247

Wilson Electronic SIGNALBOOST DT Dual-Band 800/1900 MHz Desktop Signal Amplifier Booster 801247

• Complete package - everything you need is in the box

• Wireless operation - no connection to cell phone or data card

• Works in any inside location where improved cellular signal is needed: homes, offices, buildings

• Power control logic ensures maximum output power is within cellular standards

• Works on all generations of CDMA, TDMA and GSM
• Works with AT&T, Sprint PCS, T-Mobile, Verizon Wireless and more

• FCC and IC type accepted

• Greatly reduces disconnects and drop-outs

• Multiple cell phones and data cards can be amplified simultaneously

• Significantly improves voice and data signal quality

• Increases data communication rates needed for 3G technologies

• Receives and transmits better than your cell phone

• Extends cell phone battery life

• Easy to install and use, and it's affordable

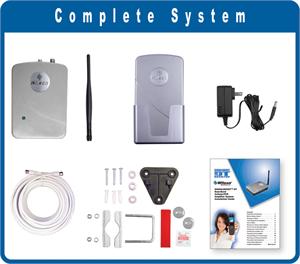

• Wilson® SIGNALBOOST™ DT Cellular Signal Amplifier

• Outdoor / Window Directional 5 dB Cradle Antenna

• Omni-Directional Inside Antenna

• Two lengths RG6 Cable, 20' and 30'

• All Mounting Hardware

• AC Power Supply


How it works

• Part Number 801247
• Frequency Range 824-894 MHz / 1850-1990 MHz
• Gain 55 dB / 55 dB
• Linear Output Power +30 dBm
• Max Output Power +33 dBm <
• Typical Output +30 dBm / +10 dBm
• Noise Figure 3.5 dB nominal

• Isolation 90 dB
• Power Requirements 110-240 V AC, 50-60 Hz, 0.6 A max
• Connectors TNC Female / F-Female
• Dimensions 6.2 x 4.2 x 1.5 (inch) / 15.7 x 10.7 x 3.8 (cm)
• Weight 0.64 lbs / 0.29 kg

How it works

Wilson Electronic SIGNALBOOST DT Dual-Band 800/1900 MHz Desktop Signal Amplifier 801247
