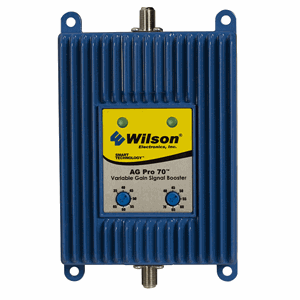

Wilson iDEN 800 MHz Adjustable Gain In-Building Signal Booster 804080
|
|
In Stock
Item Number: 804080
Manufacturer: Wilson Electronics
Manufacturer Part No: 804080
|
Wilson Electronics iDen 800 MHz 70 dB Signal Booster Amplifier 804080
Wilson iDen signal booster with adjustable gain In-Building wireless smart technology II signal booster.
Wilson Cellular's new SignalBoost 70 dB DB PRO 804080 iDEN Amplifier works with all cell phones and laptop data cards using 800MHz iDEN, Nextel.
Features of Wilson 804080 Amplifier
- Adjustable gain control for simple installation in most locations
- Provides a reliable signal to significantly reduce dropped calls and increase data rates
- No physical connection to your cell phone or data card
- Allows multiple phones and cellular data cards to be used simultaneously
- Oscillation (or interference) detection and automatic shutdown with auto reset
- Overload protection circuit – protects cell towers from being overloaded
- Bi-directional signal booster amplifies signals both to and from the cell tower
- Compatible with all cellular devices on Nextel/iDEN cellular networks
- Configurable with a variety of Wilson cellular antennas to fit virtually any building installation
- Extends battery life – Booster enables phone to work at reduced power
|
Product Number |
804080 |
|
Frequency
|
806-821 MHz / 851-866 MHz
|
|
Gain
|
70 dB / 75 dB
|
|
Max Uplink Power
|
2512 mw
|
|
Max Downlink Power
|
26 dBm
|
|
Noise Figure
|
3.5 dB nominal
|
|
Power Requirements
|
100-240 V AC, 50-60 Hz, 21 W
|
|
Connectors
|
N-Female
|
|
Dimensions
|
5.7 x 4.2 x 1.5 inch (14.0 x 10.8 x 3.9 cm)
|
|
Weight
|
1.27 lbs (0.544 kg)
|
Optional Accessories (Sold Separately)
Wilson 804080 iDen Signal Booster Amplifier
|
MSRP: $69.99
Price: $59.99
You Save: $10.00 (14 %)
Wilson Electronics In Door Dual-Band Dome Antenna 800 1900 MHz - 301121
|
|
Using Wilson 804006 amplifier in conjunction with Wilson antennas, the outside antenna will collect the cell signal and send it through the cable to the amplifier. The signal is then amplified and broadcast from the inside antenna to the surrounding area.
|
|
|
| |
|
|
|
