Wilson Electronics In-Building Wireless Signal 50db Amplifier Kit 804005 for Nextel / iDEN
 Wilson Electronics In-Building Wireless Signal 50db Amplifier 804005  Yagi 800-900 MHz Cellular Antenna (301129)  Dual-Polarity Dome Antenna (301123)  15 & 50-feet WILSON400 Ultra-Low-Loss Coaxial Cable |
|
In Stock
Item Number: 804005
Manufacturer: Wilson Electronics
Manufacturer Part No: 804005
|
Wilson Electronics In-Building Wireless Signal 50db Amplifier Kit 804005 for Nextel / iDEN
Wilson amplifiers are small, portable, bidirectional devices that deliver service levels consistent with what would be expected in areas of high cell network coverage. They amplify a weak or shadowed signal in mobile, marine and in-building applications.
When using a Wilson amplifier in conjunction with Wilson antennas, the outside antenna will collect the cell tower signal and send it through the cable to the amplifier. The signal is then amplified and broadcast from the inside antenna to the surrounding area. Cell phones and cellular data cards in that area then communicate with the improved signal. When a cell phone or cellular device transmits, the signal is received by the inside antenna, amplified and broadcast back to the cell tower through the outside antenna.
Inside this Package
• In-Building wireless amplifier 804005
• AC/DC 110v power supply
• Outside Yagi antenna 301129
• Dual-Polarity Dome Antenna 301123

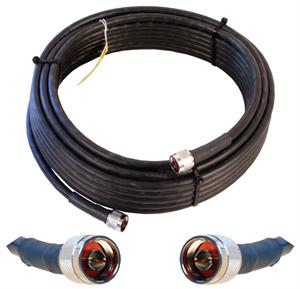

• 2 Antenna coax cables (50 feet and 15 feet)

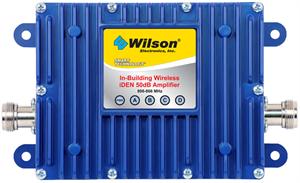

In-Building Wireless iDEN 50 dB Amplifier 804005
• For iDEN frequencies 806-821 MHz / 851-866 MHz
• Coverage area up to 2500 sq feet (Un-Obstructed area)
• Automatic gain control up to 50 dB
• Approximately 2 dB gain step 30-50 dB
• Max Output Power up to 3 watts
• Power control logic ensures maximum output power is within cellular network standards
• Automatic shutdown on overload
• Gain indicator lights
• Oscillation detection and gain reduction with auto reset intervals
• AC power supply included
• FCC and IC type accepted
*Yagi 800-900 MHz Cellular Antenna 301129
• Directional antenna
• 5 elements
• 10 dBi gain / Max power 10 watts
• Pipe mounting hardware included
• For fixed installations
*Dual-Polarity Dome Antenna 301123
• Horizontal and vertical polarity (circular polarization)
Less fading due to polarization
• Built-in ground plane
• Gain 5.2 dBi / 4.0 dBi
• Mounting hardware included
• For fixed installations
*Mount the Yagi antenna so that it points toward the cell site and away from where the inside antenna will be located. Depending on your amplifier model, the two antennas will need 50-75 feet of separation.
It is important to read through all of the installation steps for your particular application prior to installing any equipment. Read through the instructions, visualize where all the equipment will need to be installed and do a soft installation before mounting any equipment. If you do not understand the instructions in full, seek professional help, or contact Wilson Technical Support at 866-294-1660.
