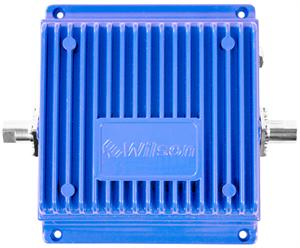

Wilson Direct Connection Cell Single Band 824-894MHz Signal Amplifier 811101
Wilson 824-894 MHz (Cellular) direct connection bi-directional amplifier provides up to 3 watts maximum output power with automatic gain control and a protection circuit for cell system overload.
Features:
- Improves voice and data signal quality
- Improves data communication rates needed for 3G technologies
- Power control logic ensures maximum output power is within cellular network standards
- Automatic gain control
- Automatic shutdown on overload.
- Advanced electronics receive and transmit better than a cell phone or cellular data card
- Connects directly to a cell phone or cellular data card with a Wilson antenna adapter
- Mobile, marine and in-building use
- DC power supply included - AC power supply sold separately
- Greatly reduces disconnects, drop outs, and noise
- Transmits signal energy to the outside antenna
- FCC and IC type accepted
1 year warranty from Wilson Electronics
Specifications:
Part Number 811101
Frequency 824-894 MHz (with 1900 MHz bypass)
Gain 10 dB
Max Output Power 3 watts
Max RF +35 dBm / +15 dBm
Noise Figure 3.5 dB nominal
Flatness ± 2 dB / ± 2 dB
Isolation > 90 dB
Power Requirements 12 V, 0.5-1.5 A max
Connectors FME-Male 50 ohms
Dimensions 5.5 x 4.3 x 1.4 (inches) or 14.0 x 10.8 x 3.5 (cm)
Weight 1.32 lbs or 0.6 kg
