Wilson Mobile Wireless Cellular/PCS Dual-Band 800/1900MHz Amplifier 801231
|
|
In Stock
Item Number: 801231
Manufacturer: Wilson Electronics
Manufacturer Part No: 801231
|
Wilson Mobile Wireless Cellular/PCS Dual-Band 800/1900MHz Signal Booster Amplifier 801231
Features
|
• Installs in minutes – no special tools required
• Portable – can easily be moved between vehicles

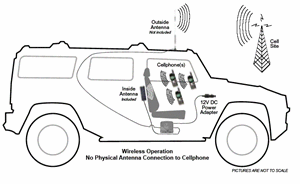

• Wireless operation - no physical connection to cell phone or data card
• Supports multiple users in vehicle
• Amplifies signals to and from the cell site on both 800MHz and 1900MHz frequencies
• Microprocessor-controlled circuitry ensures reliable operation within regulatory standards
• Build-in antenna in the phone cradle permits hands-free operation (301146)
• Improves signals for both voice and data
• Includes our high efficiency 12” exterior magnet mount antenna
• Six times more power than a typical cell phone
• DC power supply included (cigarette lighter type), AC power supply sold separately
• FCC and IC Type Accepted
|
|
Specifications
|
|
Part Number
|
|
801231
|
|
Frequency
|
|
824-894 MHz / 1850-1990 MHz
|
|
Gain
|
|
40 dB / 45 dB
|
|
Max Output Power
|
|
1.5 watts
|
|
Max RF
|
|
31.7 dBm
|
|
Noise Figure
|
|
3.5 dB nominal
|
|
Flatness
|
|
± 3.5 dB / ± 4 dB
|
|
Isolation
|
|
> 90 dB
|
|
Power Requirements
|
|
6V, 0.6A - 2A (subject to uplink power)
|
|
Connectors
|
|
SMA Female
|
|
Dimensions
|
|
3.25 x 3.25 x 1 (inches) or 9.6 x 8.1 x 3.8 (cm)
|
|
Weight
|
|
4 oz or 0.11 kg
|
|
|
Wireless Extender zBoost Wi-Ex Dual Band YX230-CEL/PCS for use in car, SUV, Truck or any vehicle. Wi-Ex cell phone signal booster extends an in-vehicle Cell Zone for multiple users.
|
|
|
|
|
